3 Three forces act on the bracket. Determine the magnitude and direction ϴ of so that the resultant force is directed […]
components
3
Three chains act on the bracket such that they create a resultant force having a magnitude of 500 lb. If […]
Three chains act on the bracket such that
1 The chisel exerts a force of 20 lb on the wood dowel rod which is turning in a lathe. Resolve […]
The chisel exerts a force of 20 lb
2 Force F acts on the frame such that its component acting along member AB is 650 lb, directed from B […]
Force F acts on the frame such that

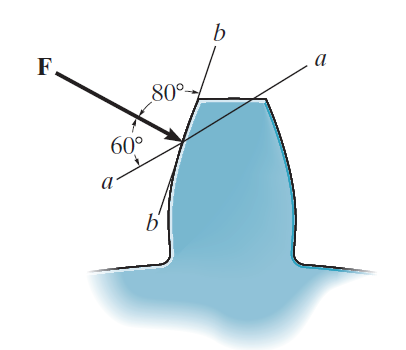

The force acting on the gear tooth is F = 20 lb. Resolve this force into two components acting along […]
The force acting on the gear tooth is
Resolve the 250 N force into components acting along the u and v axes and determine the magnitudes of these […]
Resolve the 250 N force into components

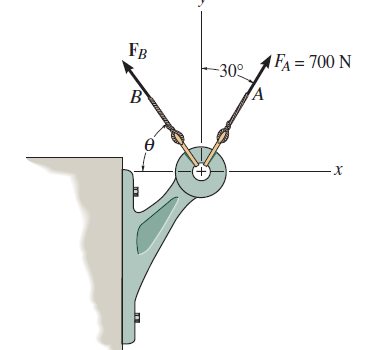

Determine the magnitude and orientation of so that the resultant force is directed along the positive y axis and has […]
Determine the magnitude and orientation
2 Resolve each force acting on the support into its x and y components, and express each force as a Cartesian […]
Resolve each force acting on the support
Resolve each force acting on the gusset plate into its x and y components, and express each force as a […]
Resolve each force acting on the gusset plate
If the resultant force of the two tugboats is 3 kN, directed along the x positive axis, determine the required […]
If the resultant force of the two tugboats

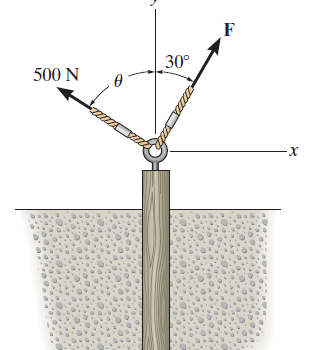

Two forces act on the screw eye. If F=600 N, determine the magnitude of the resultant force and the angle […]
Forces act on the screw eye

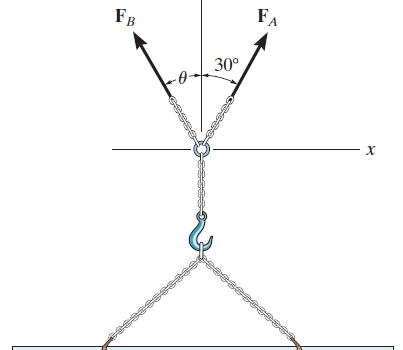

The beam is to be hoisted using two chains. Determine the magnitudes of forces and acting on each chain in […]
