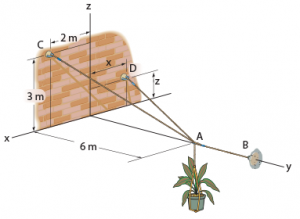

If the mass of the flowerpot is 50 kg, determine the tension developed in each wire for equilibrium. Set x = 1.5 m and z = 2 m.

If the mass of the flowerpot

Image from: Hibbeler, R. C., S. C. Fan, Kai Beng. Yap, and Peter Schiavone. Statics: Mechanics for Engineers. Singapore: Pearson, 2013.

Solution:

Show me the final answer↓

We will first find the locations of the points A, C, and D. We do not need to find the location of point B as the force in cable AB would lie along the y-axis.

If the mass of the flowerpot

Using the diagram, the locations of the points in Cartesian vector form is:

A:(0i+6j+0k)

C:(2i+0j+3k)

D:(-1.5i+0j+2k)

(remember x = 1.5 m, and z = 2 m)



We can now write position vectors for cables AC and AD.

r_{AC}\,=\,\left\{(2-0)i+(0-6)j+(3-0)k\right\}\,=\,\left\{2i-6j+3k\right\}

r_{AD}\,=\,\left\{(-1.5-0)i+(0-6)j+(2-0)k\right\}\,=\,\left\{-1.5i-6j+2k\right\}

A position vector, denoted \mathbf{r} is a vector beginning from one point and extending to another point. It is calculated by subtracting the corresponding vector coordinates of one point from the other. If the coordinates of point A was (x_A,y_A,z_A) and the coordinates of point B was(x_B,y_B,z_B), then r_{AB}\,=\,(x_B-x_A)i+(y_B-y_A)j+(z_B-z_A)k



Next, we will find the magnitude of each position vector.

magnitude of r_{AC}\,=\,\sqrt{(2)^2+(-6)^2+(3)^2}\,=\,7

magnitude of r_{AD}\,=\,\sqrt{(-1.5)^2+(-6)^2+(2)^2}\,=\,6.5

The magnitude is equal to the square root of the sum of the squares of the vector. If the position vector was r\,=\,ai+bj+ck, then the magnitude would be, r_{magnitude}\,=\,\sqrt{(a^2)+(b^2)+(c^2)}. In the simplest sense, you take each term of a vector, square it, add it together, and then take the square root of that value.



Now, we can find the unit vectors for each position vector.

u_{AC}\,=\,\left(\dfrac{2}{7}i-\dfrac{6}{7}j+\dfrac{3}{7}k\right)

u_{AD}\,=\,\left(-\dfrac{1.5}{6.5}i-\dfrac{6}{6.5}j+\dfrac{2}{6.5}k\right)

The unit vector is each corresponding unit of the position vector divided by the magnitude of the position vector. If the position vector was r\,=\,ai+bj+ck, then unit vector, u\,=\,\dfrac{a}{\sqrt{(a^2)+(b^2)+(c^2)}}+\dfrac{b}{\sqrt{(a^2)+(b^2)+(c^2)}}+\dfrac{c}{\sqrt{(a^2)+(b^2)+(c^2)}}



Our next step is to express each force in the cables.

F_{AC}\,=\,F_{AC}\left(\dfrac{2}{7}i-\dfrac{6}{7}j+\dfrac{3}{7}k\right)

F_{AD}\,=\,F_{AD}\left(-\dfrac{1.5}{6.5}i-\dfrac{6}{6.5}j+\dfrac{2}{6.5}k\right)

(simplify by expanding the brackets and writing the fractions in decimal form)

F_{AC}\,=\,\left\{0.286F_{AC}i-0.857F_{AC}j+0.429F_{AC}k\right\}

F_{AD}\,=\,\left\{-0.231F_{AD}i-0.923F_{AD}j+0.308F_{AD}k\right\}

F_{AB}\,=\,\left\{0i+F_{AB}+0k\right\}

(Remember, F_{AB} is the force that lies along the y-axis, it only has the y-component)

W\,=\,\left\{0i+0j-490.5k\right\}

(Force W is the weight of the pot, which has only a z-component. The weight is equal to (50)(9.81)=490.5 N)



As the system is in equilibrium, all forces added together must equal zero.

\sum \text{F}\,=\,0

F_{AB}+F_{AC}+F_{AD}+W\,=\,0



Since all the forces added together must equal zero, then the individual components added together must also equal zero.

x-components:

0.286F_{AC}-0.231F_{AD}\,=\,0

y-components:

-0.857F_{AC}-0.923F_{AD}+F_{AB}\,=\,0

z-components:

0.429F_{AC}+0.308F_{AD}-490.5\,=\,0



Solving the three equations gives us:

F_{AB}\,=\,1210 N

F_{AC}\,=\,605 N

F_{AD}\,=\,749 N

This question can be found in Engineering Mechanics: Statics (SI edition), 13th edition, chapter 3, question 3-54.
