A boy throws a ball straight up from the top

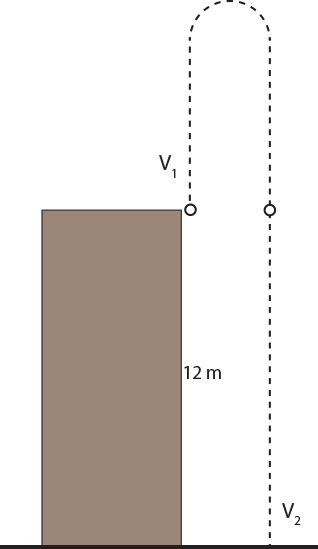

A boy throws a ball straight up from the top of a 12-m high tower. If the ball falls past him 0.75 s later, determine the velocity at which it was thrown, the velocity of the ball when it strikes the ground, and the time of flight.

Solution:

Show me the final answer↓

A boy throws a ball straight up from the top

Our point of origin would be the location where the boy first throws the ball from. That would mean after 0.75 s, as the ball passes him, the displacement of the ball would be zero, since the ball is at the same location from where it started. Let us use the following kinematics equation to figure out the velocity of the ball as it was thrown.

s=s_0+v_0t+\dfrac{1}{2}at^2

(Where s is final displacement, s_0 is initial displacement, v_0 is initial velocity, t is time, and a is constant acceleration)



Substitute the values we know:

s=s_0+v_0t+\dfrac{1}{2}at^2

0=0+(v_1)_0(0.75)+\dfrac{1}{2}(-9.81)(0.75^2)

(As discussed, s=0 m and s_0= 0 m. Here, the acceleration due to gravity is -9.81 m/s^2.)

(v_1)_0=3.68 m/s

Note that (v_1)_0 represents the velocity at which the ball was thrown up.



We can now figure out the time when the ball hits the ground. When the ball hits the ground, the displacement is now -12 m since the ball is 12 m below the origin. Again, using the same kinematics equation we can write:

s=s_0+v_0t+\dfrac{1}{2}at^2

-12=0+(3.68)(t)+\dfrac{1}{2}(-9.81)(t^2)

0=-4.905t^2+3.68t+12

(Solve for the positive root of t)

t=1.983 s



We can now figure out the speed of the ball at when the ball impacts with the ground using the following kinematics equation:

v=v_0+at

(Where v is final velocity, v_0 is initial velocity, a is acceleration and t is time)



Substitute the values we know:

v=3.68+(-9.81)(1.983)

v=-15.77 m/s

(note that the negative sign shows that the velocity of the ball is towards the ground)

v=15.77 m/s \downarrow



Final Answers:

Initial velocity 3.68 m/s

t=1.983 s

v=15.77 m/s



This question can be found in Engineering Mechanics: Dynamics (SI edition), 13th edition, chapter 12, question 12-34.
